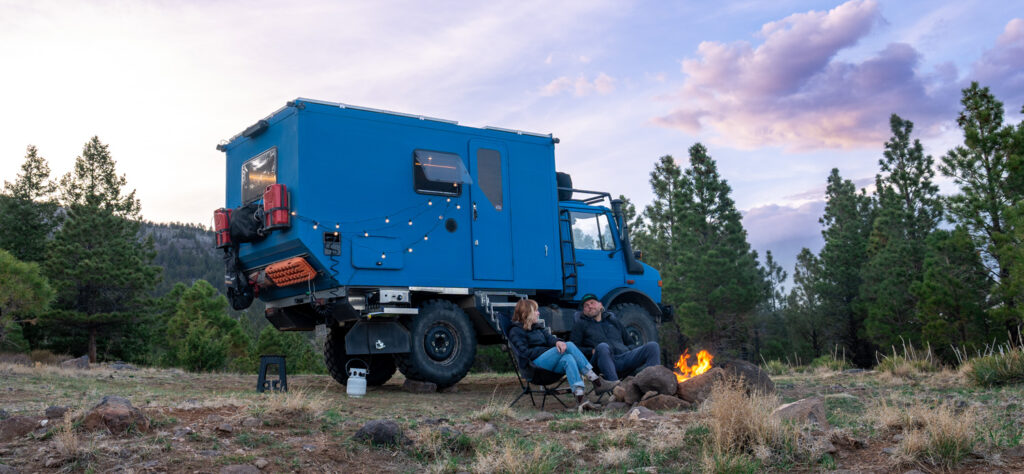

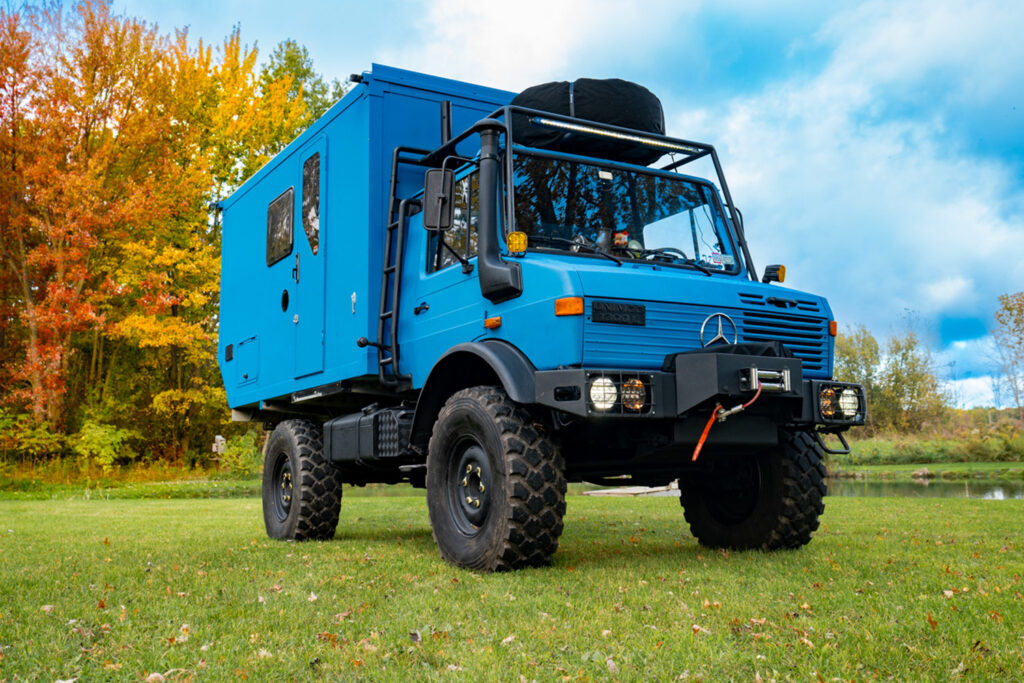

1987 Mercedes-Benz Unimog 1300L
The Story
Our Unimog began it’s life as a German military “krankenwagen” or ambulance. It was decommissioned by the German military in 2021 and purchased by Atkinson VOS who exported it to the UK.
This Unimog is a 1300L model which is also known as the U 435. Unimogs feature portal axels, a coil spring and torque tube suspensions, locking differentials, crawling gears, and extreme axel articulation, just to name a few things. The Unimog is a rugged vehicle used in the most extreme terrains and environments around the world. Known for it’s capability and all mechanical simplicity, they are off-road vehicles that can also be driven on road.
We always knew a Unimog was our dream vehicle platform but until now, the barriers seemed insurmountable. In the fall of 2022 we decided the Unimog would be our next full time home and we were determined to do whatever we could to make it happen. Our Unimog was purchased from the Unimog specialist shop Atkinson VOS in the UK that December, with plans to convert it into our dream global expedition vehicle.
After a lot of thought and planning, we decided to make the habitat out of a composite material to save on weight and increase the insulation value to create a true 4 season camper. We decided to have the camper box and subframe manufactured by Atkinson VOS as the hurtles to accomplish these specific tasks correctly became much harder once the vehicle was in the United States.
In October of 2023, our new (to us) Unimog arrived in the United States and the build began. This Unimog will now become our new full time home.
Follow along on Youtube as we work through the build process in a weekly video build series showing the ups and downs of building your home on the back of one of the world’s most capable vehicles!
The Unimog Build Series
Want to watch the Unimog being built?
We documented every step of the process in our Youtube build series!
Build Sponsors:
This page contains affiliates links! If you click on them, we will receive a tiny commission. AND… we often have a coupon code for you! Win/Win! Rest assured, the products that we link are the ones that we USE, included in our build and believe in.
Build Details
the basics:
The Vehicle:
1987 Mercedes Unimog 1300L (U435)
Ex-German Military Ambulance
Purchased From: Atkinson VOS UK
Mileage at purchase: 18,000
Engine: OM366A
Fuel Type: Diesel
Wheelbase: 3250mm
Size:
Vehicle Body Length (with camper): 20.5ft
Exterior Height: 11ft 4in
Exterior Camper Height: 82in
Exterior Camper Width: 90.5in
Exterior Camper Length: 150in
Camper Square Ft: 75sqft
Interior Camper Height: 76in
Interior Camper Length: 144in
Interior Camper Width 85in
Vehicle GVWR: 16,500lbs
find all Amazon Available Components of this build here:
WATER SYSTEM
7 Gallon Handheld Gray Water Tank for Sink Located Under Sink
Rheem (Richmonnd) 2 Gal Water Heater with 24v Heating Element Conversion (Find our full step by step water heater conversion plan here)
Convertible Shower – Collapses from full standing shower to 6 in wall
Custom Graded Stainless Steel Shower Pan
Tern External Water Fill Hatch with Lock (Use code OURWAY10 for 10% off Tern Overland Products)
We have two videos about our water system
👇🏻 Part 1 & Part 2 👇🏻
foldable hard-walled shower
Our Unimog build features the prototype of our one of a kind convertible hard-walled shower!
This is our original design that turns a full shower space into a 6 inch wall in under 60 seconds!
See it in action:
Watch our electrical installation video!
POWER (24V SYSTEM)
(3) 500w Bifacial Trina Vertex Solar Panels
Custom Aluminum Roof Rack Mounted With Korapop 225 Adhesive
1120ah of EVE LiFePO4 280ah Grade A Cells
60A MPPT Victron Energy SmartSolar Charge Controller
2000W Victron Energy MultiPlus Pure Sine Wave Inverter
Victron Energy Orion 24/12v DC-DC Converter
Victron Energy Lynx Distributor
Distribution Center (AC and DC Circuits)
230v/16A Shore Power Electrical Receptacle and Electrical Plug (Use code OURWAY10 for 10% off Tern Overland Products)
(8) 110v outlets
(2) LED Dimmer Switches for Puck Lights
(2) Rocker Switch Panels
Marine Grade Stranded Wire Throughout
Blue Sea Systems Main Power ON/OFF Switch
Solar ON/OFF Circuit Breaker Switch
watch Our Full installation and review of the Wallas appliances:
Exterior
Tern Overland: (Use code OURWAY10 for 10% off Tern Overland Products)
Scissor Entry Steps
Custom Cab Roof Rack
Triple R Lighting:
